HACO HYDRAULIC SHEARS
Guillotine shears have several advantages above swingbeam type shears. They are made to cut several material types and thicknesses and have no twist in the frame like swingbeam types. On HACO shears, the cutting action is a scissors cutting action. The hydraulic cylinders on the HSLX shears are positioned directly above the ram and push the ram in a downwards direction.
.jpg)

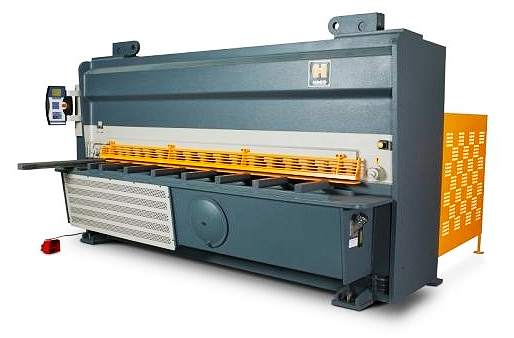

TS(X)
Guillotine-style Hydraulic Shear
HACO TS guillotines are the most budget friendly machines in their shearing line. The TS machines are guillotine type shears. This means that the cutting action is a scissors cutting action. The hydraulic cylinders on the TS shears are positioned directly underneath the ram and pull the ram in a downwards direction.
The quick manual blade gap adjustment is located at the front of the machine on 6mm models, or at the rear of the machine for 12mm models. Blade gap adjustment ranges from 0,05mm for very light sheet thickness and progressively increases up to the maximum blade gap required for heavier shear capacities. The rake angle is electro-hydraulic driven and controlled from the operator pane. The angle adjustment moves between 0.5° for thin sheets and 3° for thicker sheets.
All TS guillotines are standard fitted with the new SP9 control, conveniently located at the left hand side of the machine, within the immediate reach of the operator.
Optional Features:
- Mechanical swing away backgage
- Hydraulic swing away backgauge
- Pneumatic thin sheet support system
- Heavy duty plate support system
- Conveyor system
- Stacking system
- Protractor for angle shearing
Features:
- All steel welded interlocked Monoblock construction
- HSLX guillotines are upper driven by 2 top cylinders
- Two cutting blades each 4 cutting edges.
- Squaring arm with scale, T-slot and tilting stop.
- Tilting sheet hold-downs independent from the shearing pressure.
- Cutting line illumination
- Motorised, backgauge, on ballscrews, SERVO driven.
- Hand Safety Guard
- Back safety light guard combined with side safety fences.
- Foot pedal control
- Operation & maintenance manual
HSL(X)
Fully-Automated Shear
.jpg)
The HSLX shears are just like TS shears guillotine type shears. This means that
New operator control
On the HSLX models (sheet metal shearing machines), the beam rake angle and the blade gap setting are controlled by the new SC90 operator control. We adjust the rake angle on the HSLX guillotines by pumping more oil into, or releasing oil out of the right cylinder.
To set the blade gap, we have 2 hydraulic cylinders which push the ram of the blade gap forward or backwards. The ram is guided between 4 spring loaded bearings.

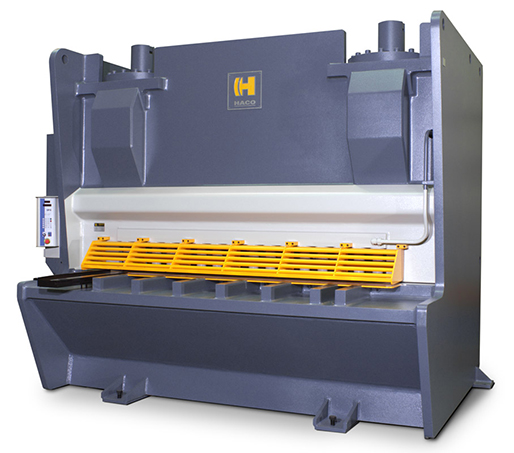

HACO HSL-HD 3032
