PRESS BRAKES

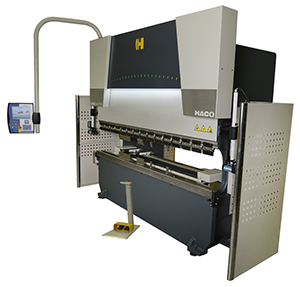

Euromaster E
The EUROMASTER E is a synchro press brake with excellent angular precision. It is a well-equipped multi-axis CNC press brake with electro-hydraulic levelling and depth control.
Standard Equipment:
- ATS 585 controller for 5-axis Y1-Y2-X (standard), R-crowning (optional), LCD display (240 x 128) in a revolving screen on pendant arm
- Angle, pressure and depth programming Y1 = Y2, tilt and angle correction, memory capacity 200 programs/400 steps
- Servo-controlled back gauge on ball circulating screws
- Range X-axis = 800mm (31.5") (except for 400 and 750 kN models, = 650 mm (25.6"))
- Fingers in height and width adjustable and rotatable in 3 positions
- European Standard (up to 2500 kN) and HACO (3200 and 4000 kN) upper tool clamping, quick manual clamping available as option
- Manually adjustable crowning table for European Standard (up to 2500 kN) and HACO (3200 and 4000 kN) tools, CNC crowning optional
Options:
- EasyBEND-2D graphic control in 10“ TFT revolving colour screen on pendant arm
- 2 axis X-R back gauge (picture) and pneumatic fingers
- HACOBend-2D Offline Software
- Fixed or movable (picture) sheet supports type I
- Quick manual clamping
- Optical Guarding systems: DSP, Lazersafe, Fiessler
Euromaster S
The EUROMASTER S is a High-End synchro press brake which features excellent bending angle precision. It is a multi-axes CNC pressbrake with electronically controlled beam parallelism and depth-stop setting.
Standard Equipment:
- FastBEND-2D Premium Graphic Control with 15” Touch Screen
- Fast X/R backgauge on ball screws
- Fast Approach Speed 200mm/s (models up to 2000kN)
- Stroke X-axis = 800mm (31.5"), speed = 1000mm/s (39.4")(models up to 4m and 2500kN)
- Stroke R-axis = 130mm (models up to 4m and 2500kN)
- European Standard toptooling with Quick Manual Clamping arrangement
- Manual Adjustable Crowning Table for European
- Standard tooling
Options:
- HacoBend-2D Offline Software
- More-axes backgauge systems : X-R-Z/Z’, X-R-Z1/Z2, X3
- Increased Daylight Opening (+170mm) and Stroke (+170mm)
- New Standard tooling (Wila)
- Movable Sheet Supports
- Optical Guarding systems (DSP, Lazersafe, Fiessler, …)
Pressmaster
The Pressmaster is a multi-axis CNC pressbrake with electronically controlled beam parallelism and depth-stop setting.
Standard Equipment:
- FastBEND-2D Premium Graphic Control with 15” Touch Screen
- Increased daylight opening (up to 620 mm and 2500 kN models)
- Fast X-R-Z1/Z2 Backgauge
- Fast Approach Speed 200 mm/s (models up to 2000kN)
- Fast Return Speed 170 mm/s (models up to 2000kN)
- Stroke X-axis = 800mm, speed = 1000mm/s (models up to 4m and 2500kN)
- Stroke R-axis = 130mm (models up to 4m and 2500kN)
- Z1-Z2 axis , speed = 1000mm/s (models up to 4m and 2500kN)
- Manual Adjustable Crowning Table for European Standard tooling
- 2 Movable sheet supports
- European Standard toptooling with Quick Manual Clamping arrangement
Options:
- HacoBend-2D/3D Offline Software
- 5 and 6 axes backgauge systems
- Angle Measurement System ALFA/F and AST (= Angle Sensor Tool)
- New Standard tooling (Wila / Wila Premium / LED Tool indicator)
- CNC sheet following system
- Optical Guarding systems (Lazersafe LZS-005, Fiessler AKAS III, …)
- SyncView
