Used Hendley & Whittemore 2-1/2” x 2-1/2” x 1/4” Angle Roll

Item Specifics

Used Hendley & Whittemore 2-1/2” x 2-1/2” x 1/4” Angle Roll Loading image. Please wait

Used Hendley & Whittemore 2-1/2” x 2-1/2” x 1/4” Angle Roll Used Hendley & Whittemore 2-1/2” x 2-1/2” x 1/4” Angle Roll Used Hendley & Whittemore 2-1/2” x 2-1/2” x 1/4” Angle Roll





Used Hendley & Whittemore 2-1/2” x 2-1/2” x 1/4” Angle Roll Used Hendley & Whittemore 2-1/2” x 2-1/2” x 1/4” Angle Roll



Back To All Used Equipment

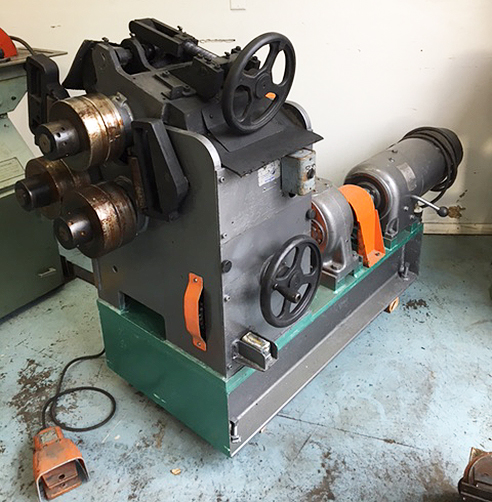

Used Hendley & Whittemore Angle Roll


Capacities:

Angles – leg out
 2-1/2” x 2-1/2” x 1/4" MS
Angles – leg in 1.5” x 1.5” x 1/4" MS
Smallest Angle – leg out
 3/4" x 3/4” x 1/8” MS
Smallest Angle – leg in
 3/4" x 3/4” x 1/8” MS
Flats on Edge
 2” x 3/8” MS
Flats on Flats 4” x 3/4" min dia. MS
Standard Steel Pipe
 1.5” with special rolls

Specifications:

Diameter Rolls
 7-1/2”
Diameter of Upper Shaft
 2.5”
Diameter of Lower Shaft
 2.5”
Pass Line
 34”
RPM of Rolls
 22
Equipped With:
 Manual Adjustment of Top Roll
Jog Forward - Reverse -- Jog Reverse - Stop
5HP 460/3/60 Brake Motor
Approximate Weight
 3000 lbs
Overall Dimensions – Approx.
 83” L x 36” W x 53” H
Serial Number
 16384




Price of above machine: $8,000.00
