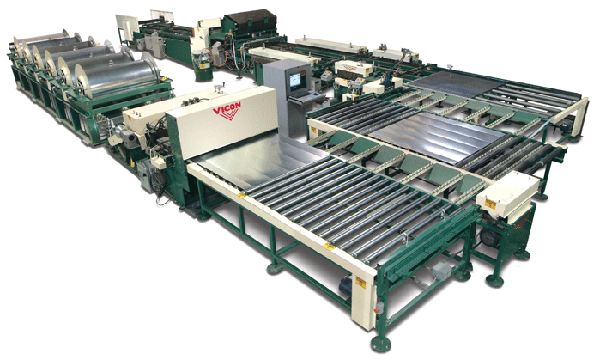

Because your bottom line is what matters most to us. From the patented coil loading system (the fastest in the industry) to a unique rollformer design that's engineered to maximize uptime, the VICON Coil Line manages profitable duct work from every angle.
Reliable performance, high productivity and superior part transfer is just the beginning. The VICON Coil Line is backed by our exclusive commitment to provide you with nationwide one-call service, training and support for as long as you own your machine.
Coil Line Segments:
VICON® Duct-Line Express
Automatic Rectangular Duct Blanking System
The Duct-Line Express front end is expandable to a Full Coil Line system at anytime. This practical solution includes an uncoiler (patented), feeder, straightener unit, beader, notching unit and heavy duty shear.
VICON® Lockseam System
Model V-510-LS
The VICON Lockseam System is built for ease of use and reliability. The system accepts beaded, notched and sheared blanks and automatically forms the Pittsburgh or Snaplock seams.
VICON® Dual Head Cleat Edge Former
Model V-CEF-DH-5
The VICON Dual Head Cleat Edge Former rollforms a 7/16" cleat edge on both ends of the duct.
VICON® Dual Head TDX Rollformer
Model V-TDX-DH-5
The Vicon TDX Rollformer will produce SMACNA's T25a or T25b connections. Material is formed to produce a SMACNA approved transverse flange connection.
VICON® Automatic Liner Application System
Model V-510-DD
The VICON Automatic Duct Liner Application System uncoils duct liner, applies liner adhesive to the sheet metal and automatically pins the liner to the sheet metal. This machine can work with various types of liner including but not limited to Armaflex® and K-Flex® insulation.
VICON® Full Wrap Automatic Brake System
Model V-516B-FW
The VICON Full Wrap Automatic Brake System is a heavy duty hydraulic bending unit. Your duct is completely formed and ready to be seamed once the duct is automatically ejected by the computer controlled gripper unit. The VICON Brake System is smooth, fast, accurate and reliable.

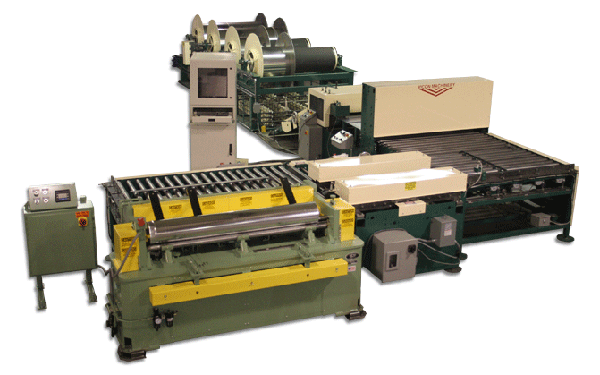

The Vicon Pipe Line manufactures precision round pipe sections automatically and fast. Sizes range from 3" to 24" diameter with either the well known reeves or modified lock seams. The VICON Pipe Line produces profitable duct work.
Pipe Line Segments:
VICON® Dual Head Cleat Edge Former
Model V-CEF-DH-5
The VICON Dual Head Cleat Edge Former rollforms a 7/16" cleat edge on both ends of the duct.
VICON® Dual Head TDX Rollformer
Model V-TDX-DH-5
The Vicon TDX Rollformer will produce SMACNA's T25a or T25b connections. Material is formed to produce a SMACNA approved transverse flange connection.
VICON® Automatic Liner Application System
Model V-510-DD
The VICON Automatic Duct Liner Application System uncoils duct liner, applies liner adhesive to the sheet metal and automatically pins the liner to the sheet metal. This machine can work with various types of liner including but not limited to Armaflex® and K-Flex® insulation.
